Характеристики
| Параметр |
Значение |
| MPN: |
BMD-BDLKULSDMINI4K |

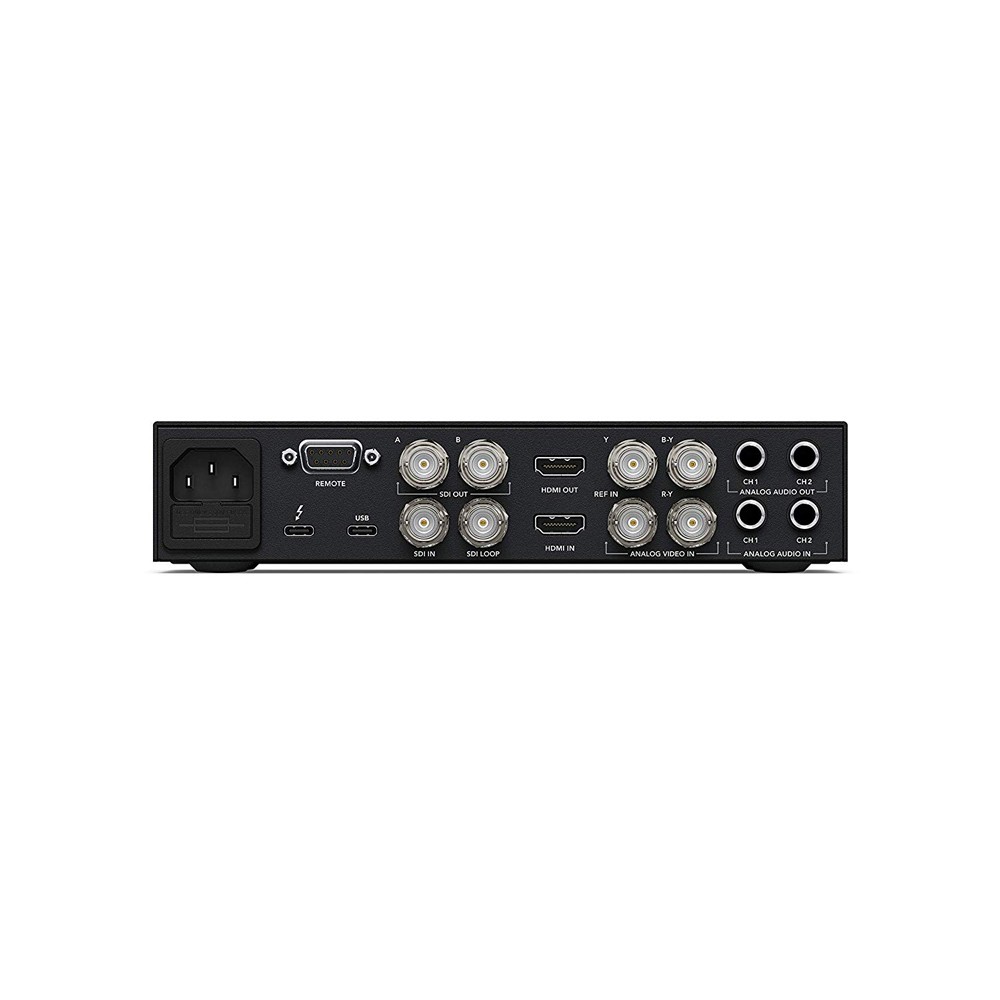

| Connections: |
: |
| SDI Video Inputs: |
1 |
| SDI Video Outputs: |
2 x program out, 1 x loop out |
| SDI Rates: |
270Mb, 1.5G, 3G, 6G, 12G |
| Analog Video Inputs: |
Component YUV or Composite NTSC/PAL. Component is switchable betw |
| Analog Audio Inputs: |
2 channels of professional balanced analogue audio with 1/4-inch |
| Analog Audio Outputs: |
2 channels of professional balanced analogue audio with 1/4-inch |
| SDI Audio Inputs: |
16 Channels embedded in SD/HD/2K/UHD/4K |
| SDI Audio Outputs: |
16 Channels embedded in SD/HD/2K/UHD/4K |
| HDMI 2.0b Video Inputs: |
1 |
| HDMI 2.0b Video Outputs: |
1 |
| HDMI Audio Inputs: |
8 Channels embedded in SD/HD/UHD/4K |
| HDMI Audio Outputs: |
8 Channels embedded in SD/HD/UHD/4K |
| Mic Input: |
1 x XLR microphone input. 48V Phantom Power switchable via softwa |
| Sync Input: |
Tri-Sync or Black Burst |
| Device Control: |
Sony™ compatible RS-422 deck control port. Serial ports TxRx dire |
| USB: |
1 x USB-C 3.1 Gen 1 (up to 5 Gb/s) |
| SD Card Reader: |
UHS-I and UHS-II compatible |
| Computer Interface: |
Thunderbolt™ 3 (Mac OS, Windows and Linux) with 45W host charging capability |
| Software: |
: |
| Software Included: |
DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS, Blackmagic Desktop Video Utility and Blackmagic driver on Linux |
| Internal Software Upgrade: |
Firmware built into software driver. Software driver loads upgrad |
| SDI Video Standards: |
: |
| SD Video Standards:: |
525i59.94 NTSC, 625i50 PAL |
| HD Video Standards:: |
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards: |
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
| Ultra HD Video Standards:: |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards:: |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
| 3D Video Standards 1:: |
720p50, 720p59.94, 720p6
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60 |
| 3D Video Standards 2:: |
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60
DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI |
| SDI Compliance: |
SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2036-1, SMPTE 2048-1, SMPTE 2081-10, SMPTE 2082-10 and SMPTE ST2108-1 |
| SDI Metadata Support: |
RP 188/SMPTE 12M-2 and closed captioning |
| Multiple Rate Support:: |
SDI video connections are switchable between SD/HD/2K/UHD and 4K |
| SDI Audio Sampling: |
Television standard sample rate of 48 kHz and 24-bit |
| SDI Video Sampling: |
C4:2:2, 4:4:4 |
| SDI Colour Precision: |
8, 10, 12-bit RGB 4:4:4 in 2D modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all 2D modes |
| SDI Colour Space: |
REC 601, REC 709 and REC 2020 |
| HDMI Video Standards: |
: |
| SD Video Standards: |
525i59.94 NTSC, 625i50 PAL |
| HD Video Standards: |
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards: |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards: |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
| 3D Video Standards: |
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI |
| Универсальный товарный код: |
9338716006087 |
| Video Format: |
SD |
| Special Effects: |
3D/2D Transition |
| Functions: |
Video Capturing |
| Number of Outputs: |
2 |
| Производитель: |
Blackmagic Design |
| Form Factor: |
Software |
| Тип: |
Capture Dock |
| Number of Inputs: |
1 |
| Модель: |
BDLKULSDMINI4K |
| Connectivity: |
BNC |
| Input Interfaces: |
HDMI |
| Media Format: |
SD Card |
| Особенности: |
Software Control |
